    TCP Send Data Format (Zeros?)

    Troubleshooting and Bug Reports
    3
    9
    286
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • G
      GaryGalbraith last edited by

      Re: [TCP Send Data format](/topic/5110/tcp-send-data-format)

      I found this previous thread with the same situation as the one I'm dealing with.  However, my particular situation is that 0s (zero) are not being transmitted.  It appears that if the parameter is a value of zero then it is just skipped.  (I need the zero to be included to preserve the expected message format on the other end.)

      I have reduced the situation to the very simple example below.

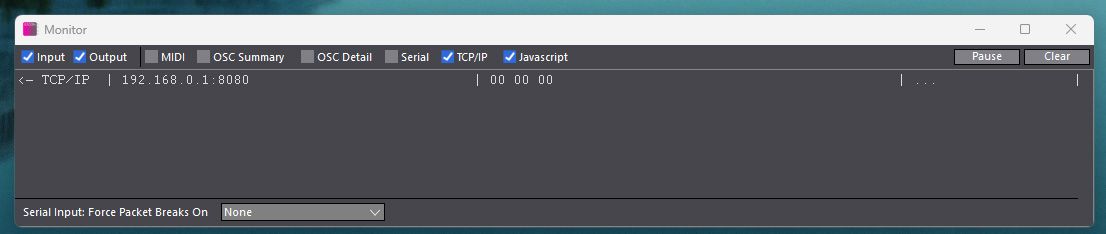

      In the above example, parameter 1 and parameter 3 are transmitted as the anticipated values.  However, parameter 2 is skipped - the zero is not transmitted

      If I use any of the other available formats in the "TCP Send" actor I just get the ASCII representation of a zero and not the value zero.

      What am I missing?

      Izzy 4.0.9 Windows 11 Pro 64-bit, 13th Gen Intel Core i9-13900H 2.60 GHz, 64GB RAM, 2TB SSD, NVIDIA GeForce GTX 4070

      Woland 2 Replies Last reply Reply Quote 0
      • Woland
        Woland Tech Staff @GaryGalbraith last edited by

        @garygalbraith

        Have you read all the documentation about the syntax by using the "Help" button at the bottom left of the dialog that appears when you double left-click the TCP Send Data actor?

        TroikaTronix Technical Support
        New Support Ticket: https://support.troikatronix.com/support/tickets/new
        Support Policy: https://support.troikatronix.com/support/solutions/articles/13000064762
        Add-Ons: https://troikatronix.com/add-ons/ & https://troikatronix.com/add-ons/?u=woland
        Professional Services: https://support.troikatronix.com/support/solutions/articles/13000109444

        | Isadora Version: all of them | Mac Pro (Late 2013), macOS 10.14.6, 3.5GHz 6-core, 1TB SSD, 64GB RAM, Dual AMD FirePro D700s |

        1 Reply Last reply Reply Quote 0
        • Woland
          Woland Tech Staff @GaryGalbraith last edited by Woland

          @garygalbraith

          Have you tried these formats?

          Px:n.mOutput the number, with a maximum of n digits to the left of the decimal point and m digits to the right. If the input parameter is text, ignore n.m and just output the text.
          Px:Zn.mSame as above, but add leading zeros to ensure a total of n digits appear to the left of the decimal point.

          Here's the full table:

          "ABC"

          When text is enclosed in double quotes, the ASCII code for each character is sent to the output. In this example, the numbers 65, 66, 68 (hex 41, 42, 43) would be sent to the output. You may also included escape characters to output special characters like a carriage return or line feed.

          XX

          Outputs the single byte represented by the specified pair of hexadecimal digits. For instance, if you entered 1F then a single byte with the decimal value 31 (hex 1F) would be sent to the output.

          Px

          Use the default formatting. For integer numbers, output the ASCII text of the number in decimal; for numbers with decimal points, output the ASCII text of the number and all the digits after the decimal point; for text inputs, output the text itself Examples: The integer 12 outputs the characters ‘1’, ‘2’ The floating point number 3.141 outputs the characters ‘3’, ‘.’, ‘1’, ‘4’, ‘1’ The text “hi!” outputs the characters ‘h’, ‘i', ‘!’.

          Px:n.mOutput the number, with a maximum of n digits to the left of the decimal point and m digits to the right. If the input parameter is text, ignore n.m and just output the text.
          Px:Zn.mSame as above, but add leading zeros to ensure a total of n digits appear to the left of the decimal point.
          Px:nX

          Output the ASCII representation of the number as n hexadecimal digits. If the input parameter is a floating point number, the digits after the decimal are ignored. If the input parameter is text, ignore the nX and just output the text. Example: Px:2X applied to the decimal value 254 outputs ‘F’, E’

          Px:ZnXSame as above, but add leading zeros to ensure a total of n digits.
          Px:C

          Output the character as a single byte of data. Examples: The number 65 gives ‘A’ The number 13 gives a carriage return character

          TroikaTronix Technical Support
          New Support Ticket: https://support.troikatronix.com/support/tickets/new
          Support Policy: https://support.troikatronix.com/support/solutions/articles/13000064762
          Add-Ons: https://troikatronix.com/add-ons/ & https://troikatronix.com/add-ons/?u=woland
          Professional Services: https://support.troikatronix.com/support/solutions/articles/13000109444

          | Isadora Version: all of them | Mac Pro (Late 2013), macOS 10.14.6, 3.5GHz 6-core, 1TB SSD, 64GB RAM, Dual AMD FirePro D700s |

          G 1 Reply Last reply Reply Quote 0
          • G
            GaryGalbraith @Woland last edited by

            @woland

            Yes, as I shared in the original post that I have tried the other formats:

            P1:1 P2:1 P3:1

            P1:1X P2:1X P3:1X

            and

            P1 P2 P3

            All of the above send the ASCII representation of the values and not the value itself, e.g. P1 is sent as 31 and not 1, P2 is sent as 30 and not 0, and P3 is sent as 32 and not 2.

            If I use the format P1:C P2:C P3:C then P1 and P3 is sent correctly and P2 is not sent at all.

            I still can't get the actual value of zero (0) sent.

            Izzy 4.0.9 Windows 11 Pro 64-bit, 13th Gen Intel Core i9-13900H 2.60 GHz, 64GB RAM, 2TB SSD, NVIDIA GeForce GTX 4070

            DusX 1 Reply Last reply Reply Quote 0
            • DusX
              DusX Tech Staff @GaryGalbraith last edited by DusX

              @garygalbraith

              First make sure the TCP Send Data actors inputs are not of the type 'text'. (incase they were mutated at some point and the type remains)

              Then try:

              P1:1BL P2:1BL P3:1BL

              Its possible that 0 as a null byte is internally representing the end of a string, so this raw binary approach may get around the issue if the receiver can handle binary. Def worth a quick test.

              Troikatronix Technical Support

              • New Support Ticket Link: https://support.troikatronix.com/support/tickets/new
              • My Add-ons: https://troikatronix.com/add-ons/?u=dusx
              • Profession Services: https://support.troikatronix.com/support/solutions/articles/13000109444-professional-services

              Running: Win 11 64bit, i7, M.2 PCIe SSD's, 32gb DDR4, nVidia GTX 4070 | located in Ontario Canada.

              G 2 Replies Last reply Reply Quote 1
              • G
                GaryGalbraith @DusX last edited by

                @dusx

                I have verified that the inputs to the "TCP Send Data" are indeed all numeric and have not mutated to text.

                I tried the format you suggested (I had not know of the BL format options you had suggested).  Now, the output is all zero regardless of the parameter value.

                Izzy 4.0.9 Windows 11 Pro 64-bit, 13th Gen Intel Core i9-13900H 2.60 GHz, 64GB RAM, 2TB SSD, NVIDIA GeForce GTX 4070

                1 Reply Last reply Reply Quote 0
                • G
                  GaryGalbraith @DusX last edited by

                  @dusx

                  Did you have any other thoughts or suggestions?

                  I can now see a zero value output but I can't get any other value outputted now.  Now it is ONLY zeros.

                  Izzy 4.0.9 Windows 11 Pro 64-bit, 13th Gen Intel Core i9-13900H 2.60 GHz, 64GB RAM, 2TB SSD, NVIDIA GeForce GTX 4070

                  DusX 2 Replies Last reply Reply Quote 0
                  • DusX
                    DusX Tech Staff @GaryGalbraith last edited by

                    @garygalbraith

                    Do you have access to how this is being interpreted on the other end?

                    Troikatronix Technical Support

                    • New Support Ticket Link: https://support.troikatronix.com/support/tickets/new
                    • My Add-ons: https://troikatronix.com/add-ons/?u=dusx
                    • Profession Services: https://support.troikatronix.com/support/solutions/articles/13000109444-professional-services

                    Running: Win 11 64bit, i7, M.2 PCIe SSD's, 32gb DDR4, nVidia GTX 4070 | located in Ontario Canada.

                    1 Reply Last reply Reply Quote 0
                    • DusX
                      DusX Tech Staff @GaryGalbraith last edited by DusX

                      @garygalbraith

                      Try

                       P1:2X P2:2X P3:2X

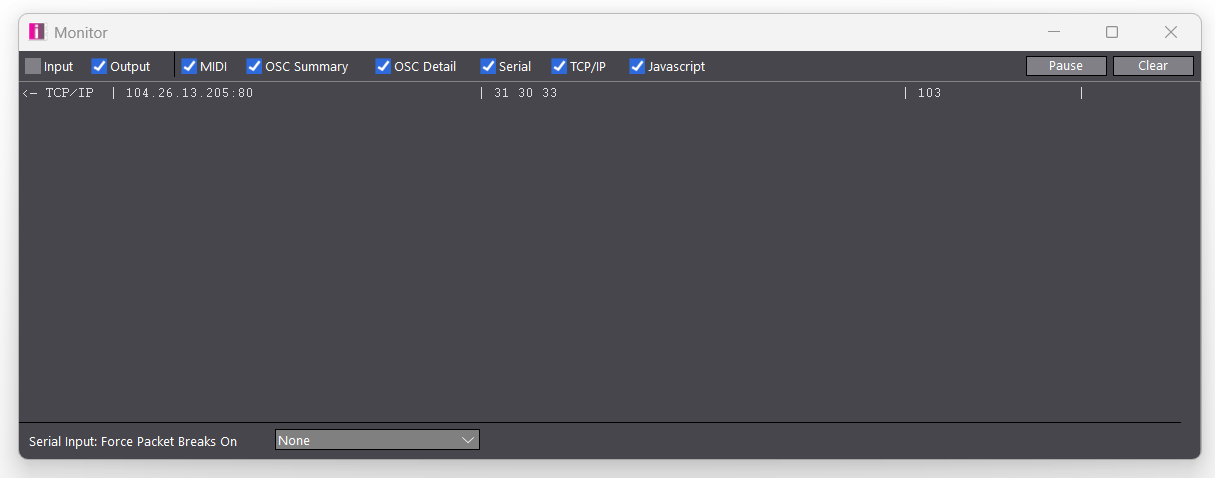

                      For me I am now getting a '0' in the output. (note I sent a 1,0, and 3, and these are converted to first ascii, then to hex.. so '1' = 0x31 )


                      This is hexadecimal, and here's what it translates to:

                      Byte (Hex)ASCII CharacterValue Sent
                      31'1'Param 1 = 1
                      30'0'Param 2 = 0
                      33'3'Param 3 = 3

                      So there is a good chance this will work for you. (fingers crossed) I don't know what your receiver is looking for exactly.

                      Troikatronix Technical Support

                      • New Support Ticket Link: https://support.troikatronix.com/support/tickets/new
                      • My Add-ons: https://troikatronix.com/add-ons/?u=dusx
                      • Profession Services: https://support.troikatronix.com/support/solutions/articles/13000109444-professional-services

                      Running: Win 11 64bit, i7, M.2 PCIe SSD's, 32gb DDR4, nVidia GTX 4070 | located in Ontario Canada.

                      1 Reply Last reply Reply Quote 0
